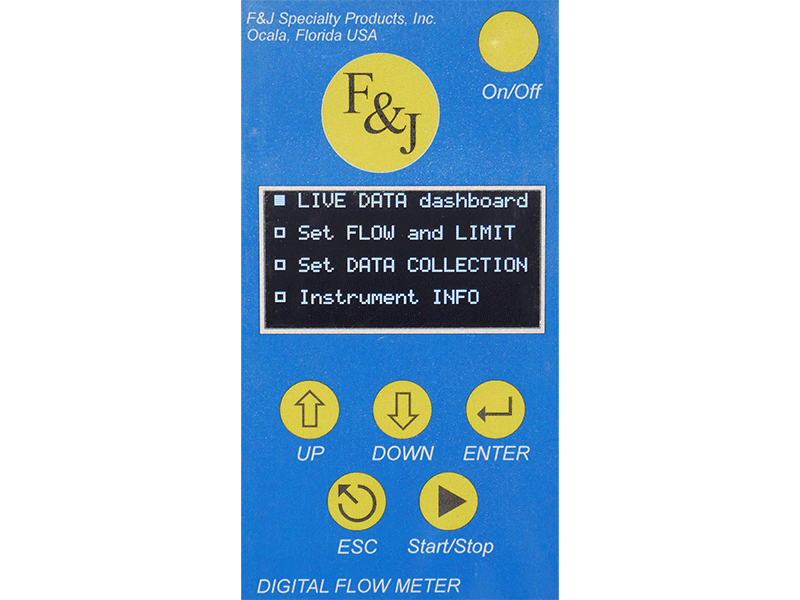

The Model DF-14M-2G cart mounted mobile low volume air sampler with digital flow meter has an adjustable, aluminum sampling gooseneck. The adjustable gooseneck permits sampling at heights varying from 4’ to 7’ above floor level. Model DF-14M-2G contains state of the art microprocessor electronics, which provides for corrected flow rate measurements, volume totalizations, and a USB communications port. It has a large bright OLED display.
The DF-14M-2G Air Sampler includes an oilless, carbon vane vacuum pump with a constant airflow regulator for use where a nearly constant airflow is desirable. The regulator holds a constant pressure drop across an in-line orifice by varying the flow through a bypass valve into the pump. This system allows the pump to work at a minimum pressure drop at all times, permitting it to run cooler, thus extending its lifetime. The oil-less pump requires no lubrication to maintain optimal efficiency during its service life. The pump is mounted on a mobile cart with two rubber wheels to permit mobile transportation of the unit.
The DF-14M-2G Air Sampler is designed for indoor use.
The typical operating flow range is 1 to 4 CFM (10 to 114 LPM).
